TM Series Top Mount Fiberglass Sand Filter
For residential and commercial pool filtration
Premium Fiberglass · Built to Last
Heavy-duty fiberglass tank, UV and corrosion resistant, top mount multi-port valve for efficient filtration and long service life.
Product Features
● Bobbin-wound fiberglass construction
● UV and corrosion resistant
● Top mount multi-port valve
● 250kPa working pressure
● 45℃ heat resistant
● Recommended sand size: 0.5-0.8mm
Product brochure
Product Manual

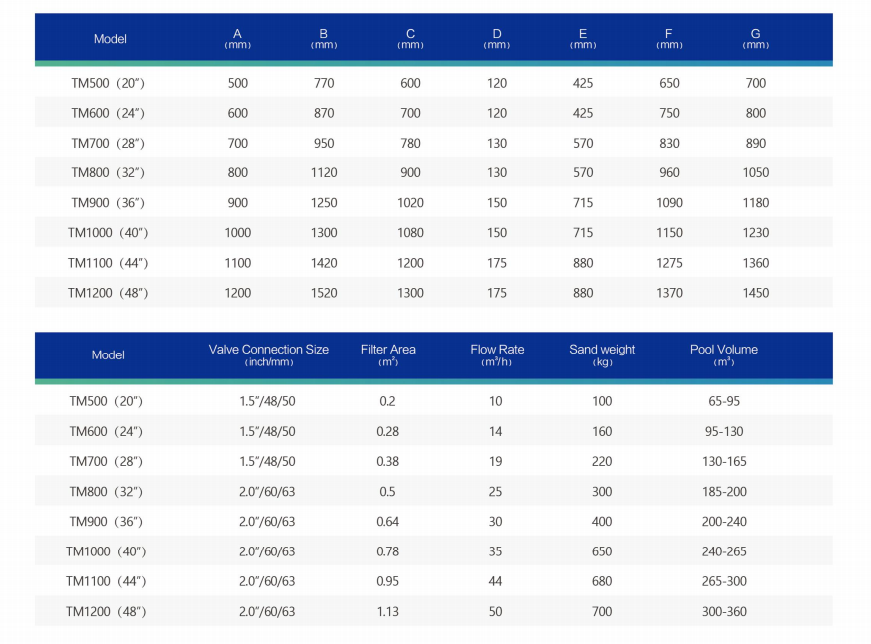

Product Model
