Quick-Open Stainless Steel Hair & Lint Strainers

A hair and lint strainer is the first line of defense in any water circulation system, installed before the pump to trap hair, fibers, leaves and large debris. It protects pumps, heat exchangers, filters and piping from damage. Stainless steel strainers offer high pressure rating and corrosion resistance, making them ideal for commercial pools, hot springs and water feature projects, and quick-open designs simplify maintenance compared to standard bolted covers.

What Does a Hair Strainer Do?

✅ Protects equipment: Traps hair, fibers and large debris before they reach the pump, preventing impeller tangling, clogged heat exchangers and blocked pipes, extending equipment life.

✅ Reduces filter load: Large debris is removed before it reaches the sand filter, reducing backwash frequency and extending filter media life.

✅ Lowers maintenance costs: Debris is collected in a removable basket for quick cleaning, with no need to disassemble pumps or piping.

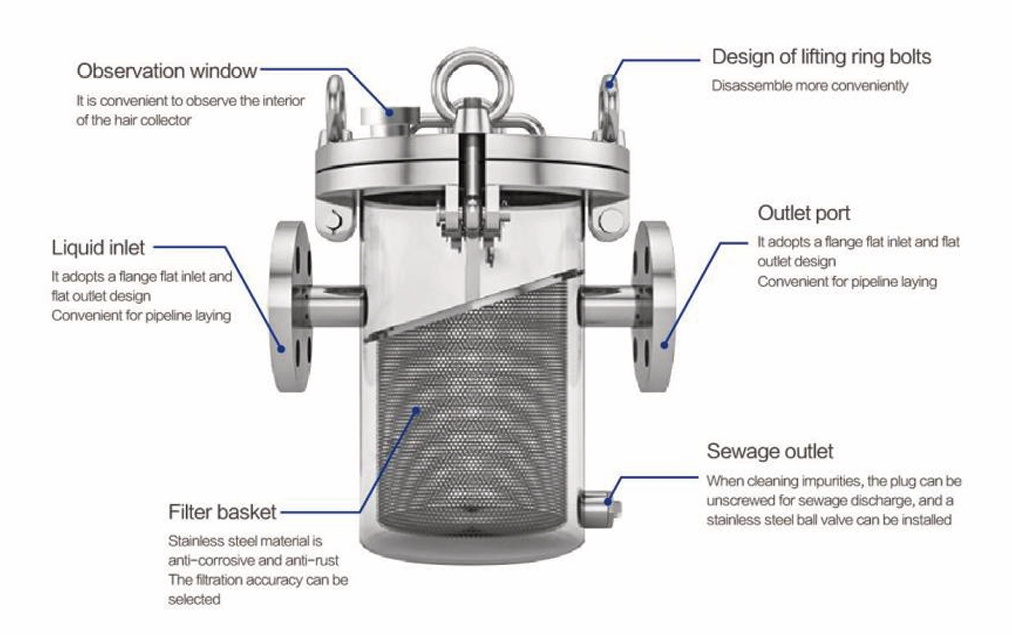

Key Features of Quick-Open Stainless Steel Strainers

Our quick-open strainers are available in 304 or 316 stainless steel, designed for easy maintenance in commercial applications:

✅ Corrosion-resistant material options: 304 stainless steel for standard pools, SPAs and fresh water applications; 316 stainless steel for chloride resistance in seawater pools, hot springs and corrosive water. High-strength tanks will not rust or deform in outdoor use.

✅ Quick-open swing bolt design: No need to loosen multiple bolts – simply release the swing bolts to open the cover and remove the basket, cutting maintenance time by 70% compared to standard bolted covers.

✅ Stainless steel filter basket: Wedge wire stainless basket resists corrosion and deformation, with customizable filtration precision, far more durable than plastic baskets.

✅ Sight glass for easy inspection: Clear sight glass in the cover lets you check debris level at a glance without opening the strainer.

✅ Flanged connections: Standard flat-face flanged inlet/outlet for simple piping installation and reliable sealing.

✅ Bottom drain port: Built-in drain valve makes it easy to flush sediment and drain water without moving the unit.

✅ Full size range: Available in sizes from small SPA units to large water park and water feature flow rates, with custom sizes and filtration precision available.

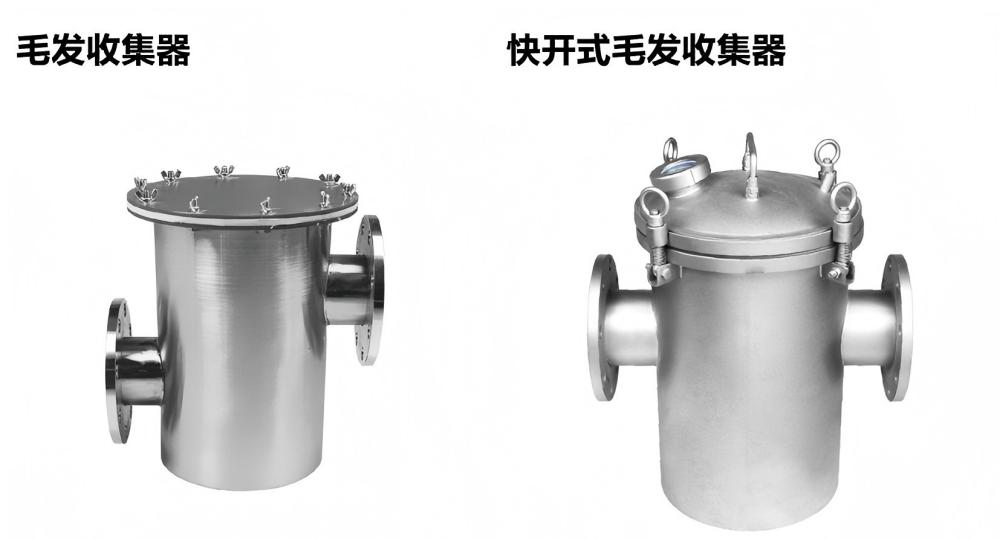

Quick-Open vs Standard Bolted Strainers

• Standard bolted strainers: Lower cost, suitable for stable systems with infrequent cleaning; slower to open as multiple bolts must be removed.

• Quick-open strainers: Slightly higher upfront cost, but far faster and easier to clean. For high-traffic commercial pools, hot springs and water parks that require frequent cleaning, they save significant labor cost over time.

Applications

Quick-open stainless steel strainers are suitable for pre-filtration in:

• Commercial pools, hotel pools, water parks and SPAs;

• Hot spring and bathhouse hot water circulation;

• Fountains and landscape water features;

• Cooling tower and industrial circulation water;

• Seawater aquaculture and aquariums (with 316 stainless steel).

Installation & Maintenance Tips

1. Install on the suction side before the pump, following the flow direction arrow on the tank;

2. Install isolation valves before and after the strainer for easy servicing;

3. Check debris level through the sight glass and clean the basket regularly;

4. Inspect the basket for damage and the O-ring for wear, replace as needed;

5. Drain all water from the strainer during winter shutdown to prevent freeze damage.

We supply a full range of quick-open stainless steel hair strainers in 304/316 material, with custom options available. Contact us for sizing and pricing.
