How to Choose a Pool Pump? Flow, Head & Sizing Guide

Many buyers choose pool pumps by power alone, ending up with a pump too small to circulate water properly, or an oversized pump that wastes electricity and causes excessive noise. Pump selection depends on flow rate, head and application, not just horsepower.

Step 1: Calculate Required Flow Rate

Flow rate is the volume of water circulated per hour:Flow Rate = Pool Volume ÷ Turnover Time

• Pool volume = length × width × average depth (in m³);

• Turnover: 4–6 hours for residential pools, 4–6 hours for commercial pools, 2–4 hours for water parks/kiddie pools, 1–2 hours for hot spring spas.Add 10–20% extra flow to account for pipe and valve resistance.

Step 2: Check Required Head

Head is not just lifting height – it also includes friction loss from pipes, elbows and valves.Calculate the height difference between equipment room and pool water level, plus friction loss from pipe runs and fittings. 10–15m head is typical for residential pools; size commercial systems based on actual pipe layout. Insufficient head reduces real-world flow.

Choose the Right Pump for Your Application

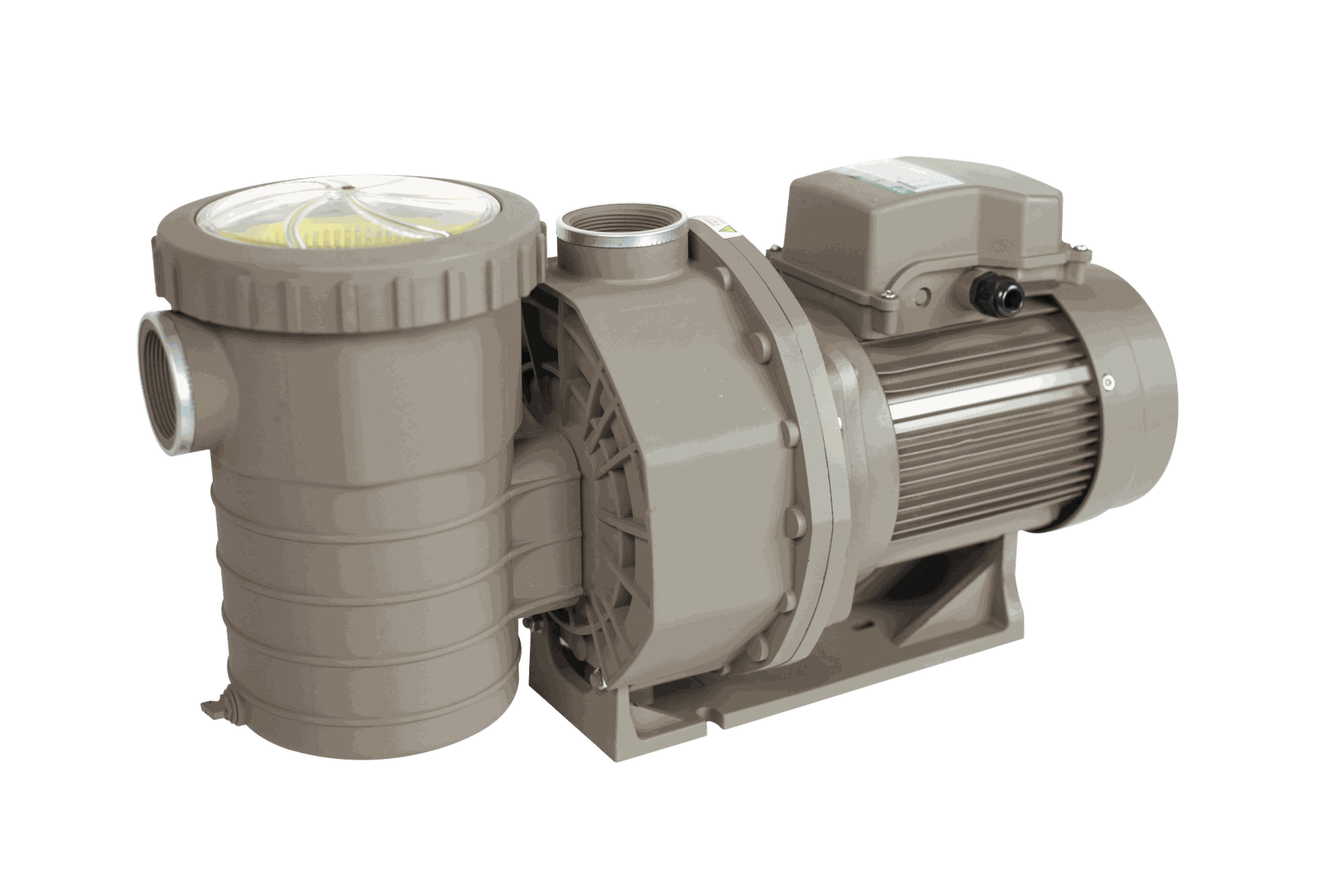

1. Residential Pools & Small SPAs: BP200-400 Series

The BP series is designed for residential and light commercial use:

• IP55 waterproof motor for safe use in damp equipment rooms;

• High flow with low operating noise;

• Graphite/ceramic double mechanical seal for leak-free operation;

• 316 stainless steel shaft, 6kg/cm² pressure rating, suitable for water up to 70°C for hot spring spas;

• Rated for continuous operation.

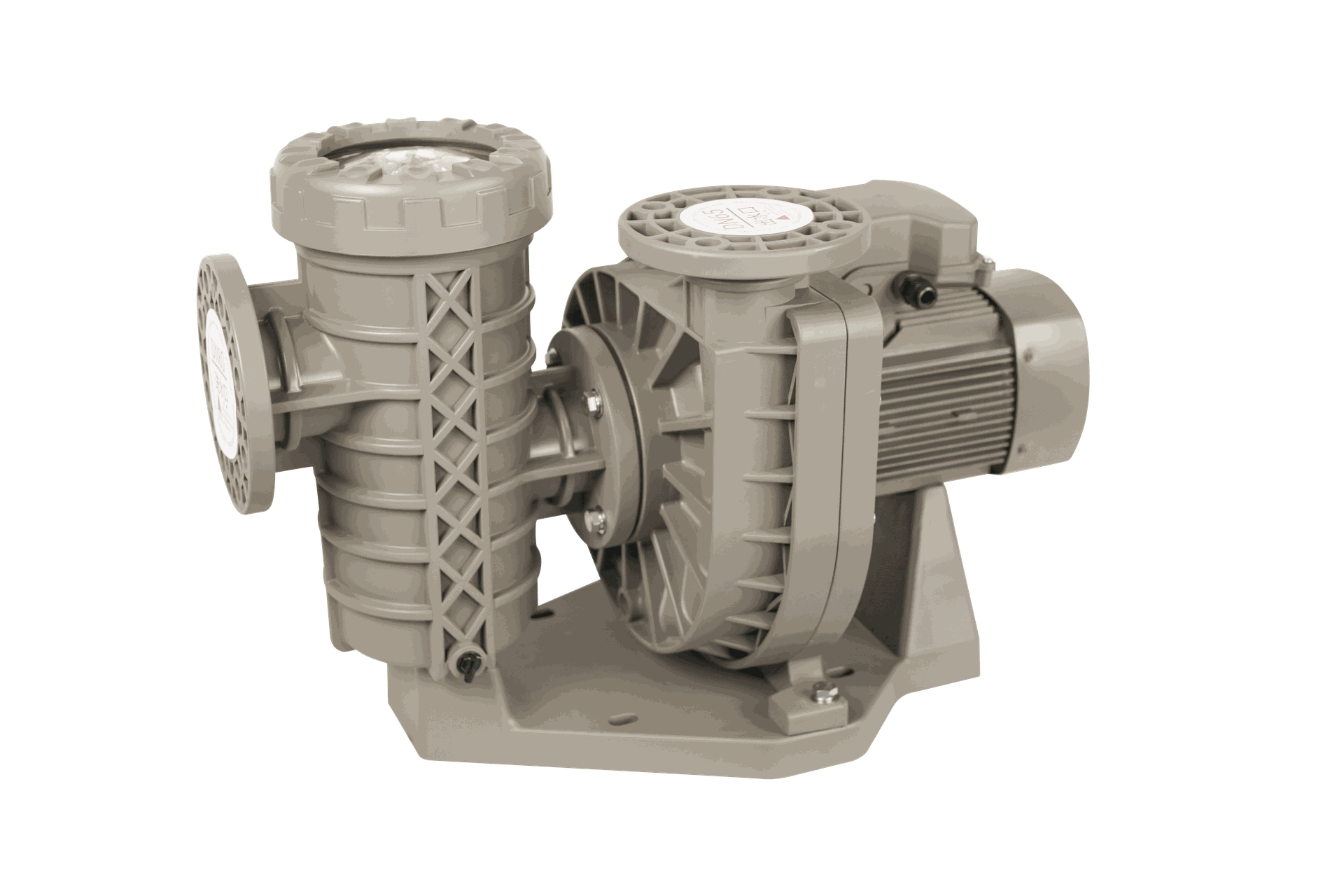

2. Medium Commercial Pools, Clubs & Hot Springs: CP200-500 / CP550-750 Series

Low-speed quiet pumps for noise-sensitive commercial venues:

• 1450rpm low-speed design, over 10dB quieter than standard pumps;

• Stable high flow for continuous heavy-duty operation;

• High-polymer corrosion-resistant pump body;

• 316 stainless fittings, Italian graphite double mechanical seal, 316L stainless steel shaft;

• F-class insulation, IP55 waterproof rating for long-term reliability.

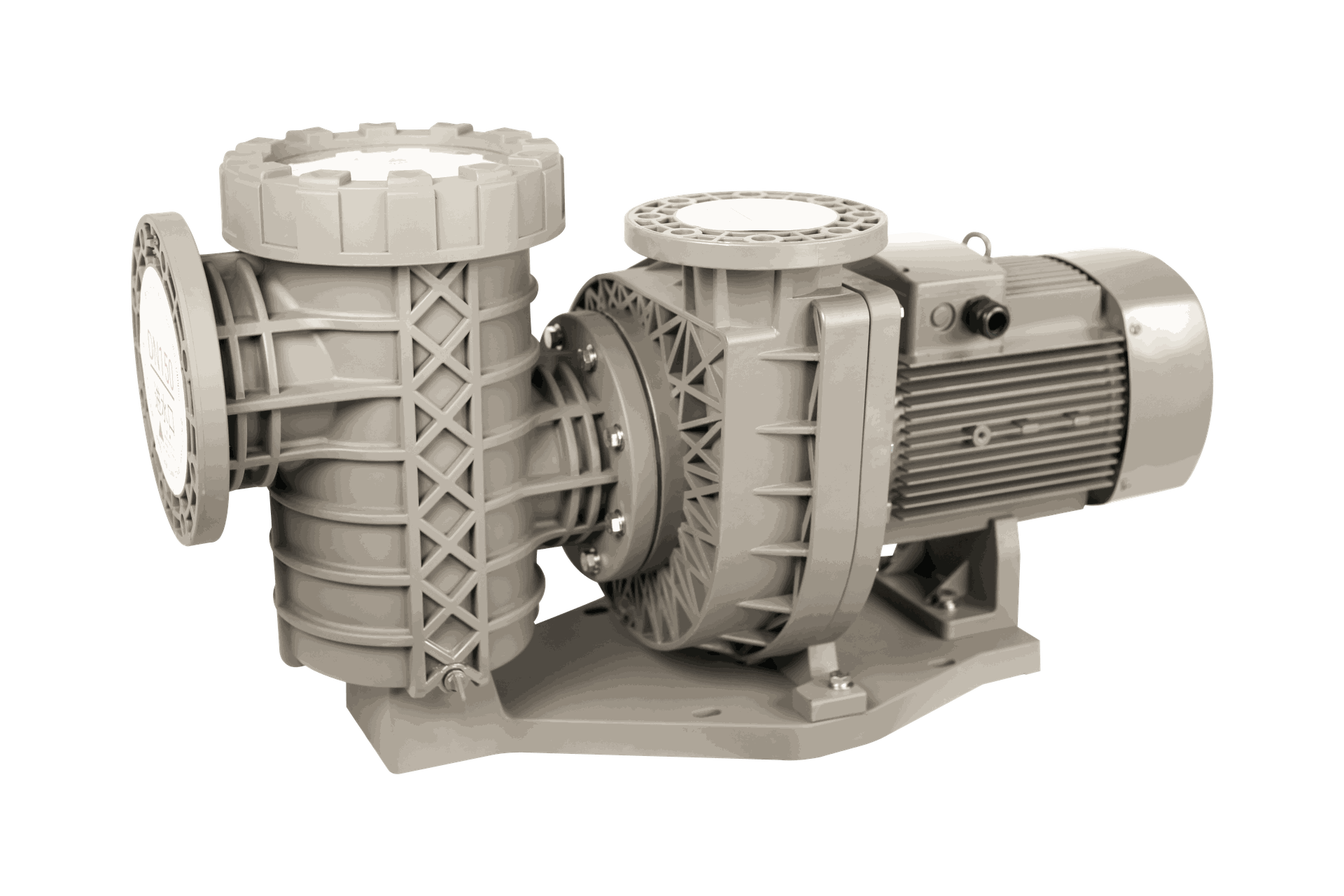

3. Large Commercial Pools, Water Parks & Aquariums: P1000-1500 Series

High-flow commercial pumps for large water volumes:

• DN150/DN100 large connections for high flow;

• 1450rpm low-speed design for quiet high-flow operation;

• Corrosion-resistant polymer body, 316L stainless shaft and Italian graphite mechanical seal;

• F-class insulation, IP55 waterproof, rated for 24/7 continuous operation.

Key Pool Pump Features to Look For

✅ Waterproof rating: Always choose IP55 or higher for pool duty; standard pumps are not safe in damp equipment rooms.

✅ Seals and shaft material: Look for graphite/ceramic mechanical seals and 316/316L stainless shafts for corrosion resistance in pools, spas and seawater.

✅ Low speed: 1450rpm low-speed motors run quieter and last longer than high-speed motors, ideal for commercial venues.

✅ Temperature rating: For hot spring spas, choose pumps rated for 70°C water; standard pumps will suffer premature seal failure.

✅ Built-in hair strainer: A built-in lint basket protects the impeller from debris.

Common Sizing Mistakes

❌ Choosing by horsepower only: actual flow and head vary between pumps; always check performance data, not just power.

❌ Oversizing the pump: too much flow wastes power and can damage filter laterals.

❌ Using standard water pumps: they are not waterproof, corrosion-resistant or fitted with strainers, and will fail quickly in pool service.

Bilanda supplies a full range of pool and spa pumps for residential to large commercial applications. Send us your pool size and application for free sizing advice.
