How Does a Pool Circulation System Work? Full Process Guide
Many people assume pool water stays still, but clear, safe pool water is continuously circulated, filtered, sanitized and heated 24 hours a day. The circulation system is the heart and veins of your pool. Below is a full breakdown of its components and how water moves through the system.

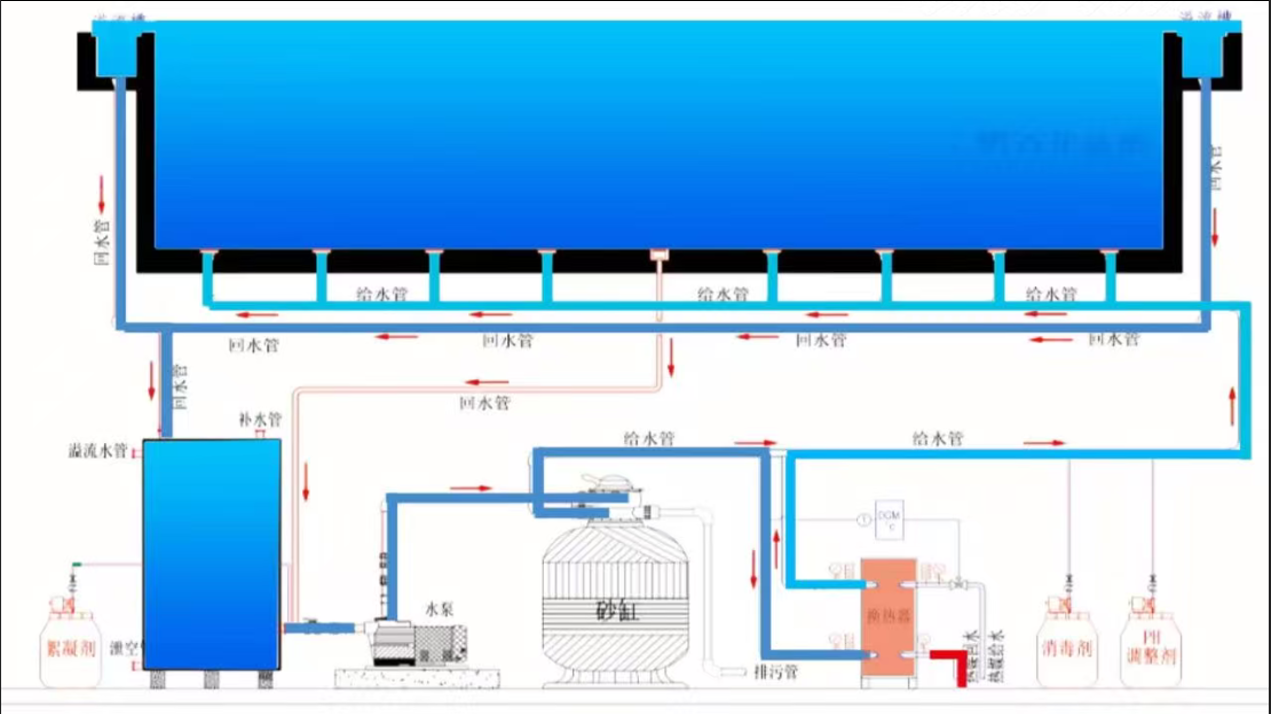

Step-by-Step Pool Circulation Process
Pool water goes through six key stages:

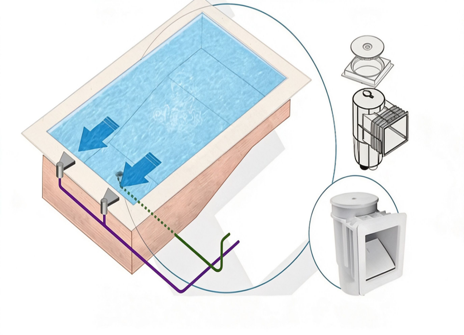

1. Water Collection
Water leaves the pool through two paths:
Main drain at the deepest point, collecting heavy sediment and debris from the pool bottom;

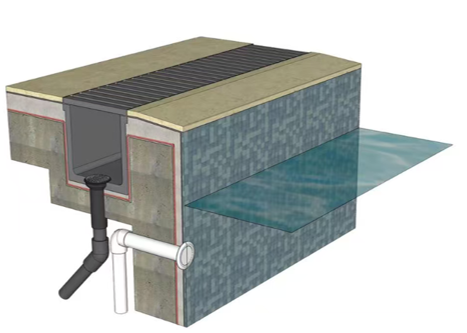

Surface overflow gutters/skimmers around the pool edge, collecting floating hair, oils and leaves from the surface.

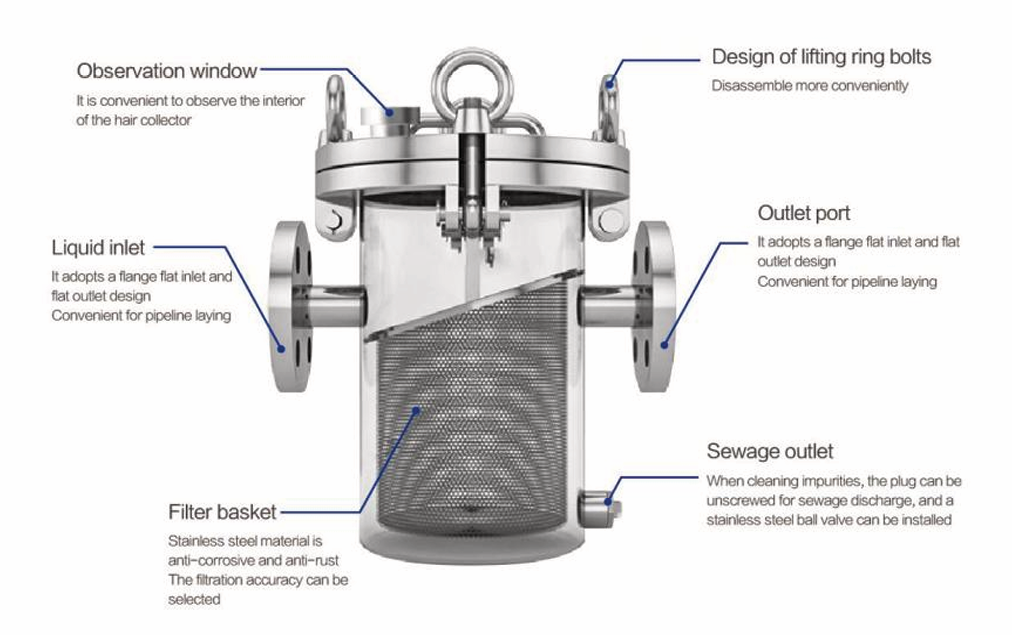

2. Pre-Filtration: Hair & Lint Strainer
Collected water first passes through a hair and lint strainer, which traps hair, leaves and large debris before it reaches the pump, protecting the impeller from tangling and damage.

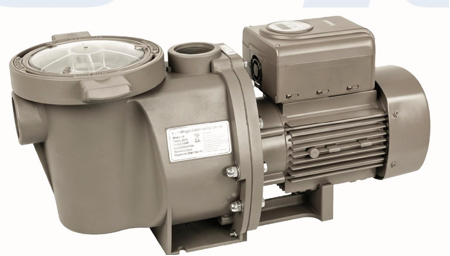

3. Pressurization: Circulation Pump
The pool pump is the heart of the system, providing pressure to move water through the pipes, filter, sanitizer and back to the pool. Pump flow rate and head determine circulation efficiency.

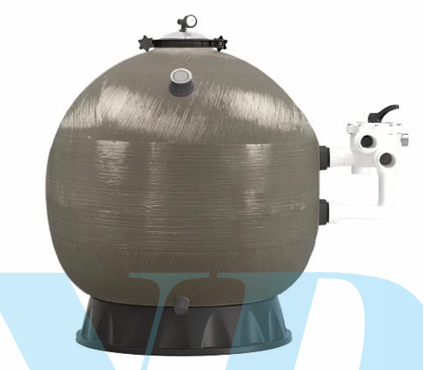

4. Filtration: Sand Filter
Pressurized water enters the sand filter, where fine suspended particles, algae and debris are trapped in the silica sand bed, leaving water clear. This is the core purification stage.

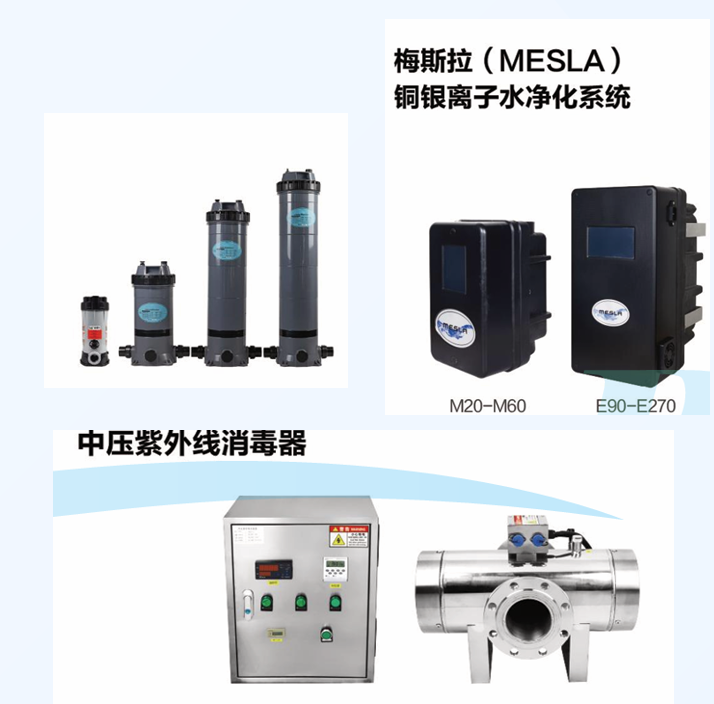

5. Disinfection
Filtration removes debris but not bacteria. Water then passes through a chemical feeder or UV sterilizer to kill bacteria, viruses and algae, meeting sanitary water standards.
6. Heating (Optional for Heated Pools)
For heated pools, sanitized water passes through a heat exchanger or pool heater to reach the set temperature (typically 26–28°C) before returning to the pool.
Clean, treated water returns to the pool through inlets, completing the cycle. This continuous circulation keeps pool water clear 24/7.
Full System Components
A standard pool circulation system includes:
Circulation pump (power source);
Sand filter (core filtration);
Hair and lint strainer (pre-filtration);
Disinfection system (chemical feeder/UV sterilizer);
Heater/heat exchanger (optional for heated pools);
Piping, valves, returns, inlets and overflow grating.
Bilanda supplies full pool circulation systems, including pumps, filters, disinfection and heating equipment, with free sizing for your pool. Contact us for details.
