How to Choose Pool Grating? Materials, Uses & Installation Guide

Many pool owners treat grating as a simple drain cover, but load capacity and material quality vary widely between products. Choosing the wrong grating can lead to breakage, tripping hazards, poor drainage, and costly replacement.

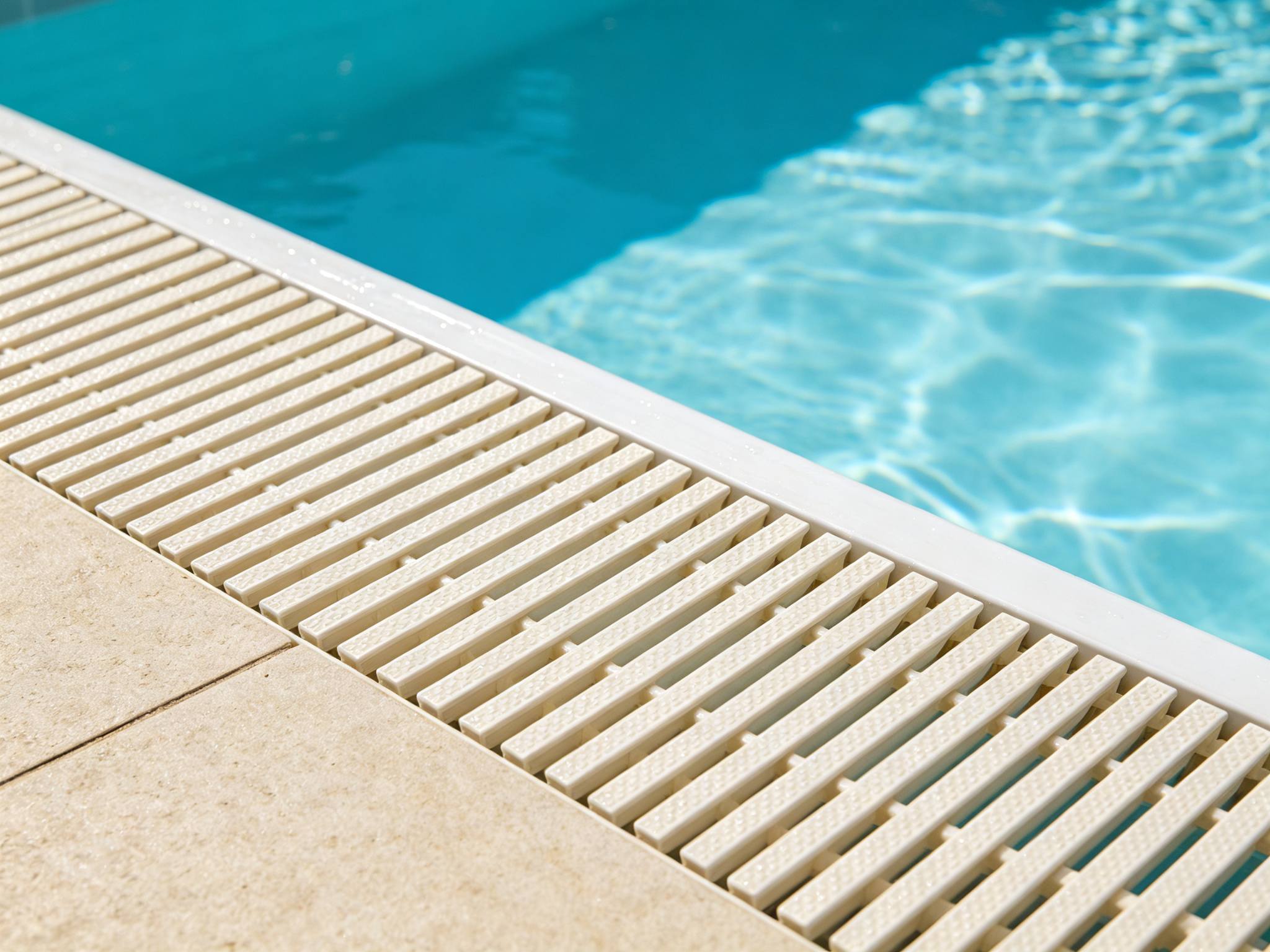

Pool grating covers overflow channels and deck drains, while allowing water to drain efficiently, preventing foot injuries, and giving your pool a clean, finished edge. Below is a full guide to choosing the right grating for your project.

Common Pool Grating Types & Materials

There are three main categories of pool grating, each suited to different use cases:

1. PP Plastic Grating

Made from high-grade engineering PP plastic, this is the most common, cost-effective option for standard pools. It is lightweight, easy to install, slip-resistant, and corrosion-proof.Available in multiple designs:

• 2-connector grating: Simple snap-together design for straight drain channels

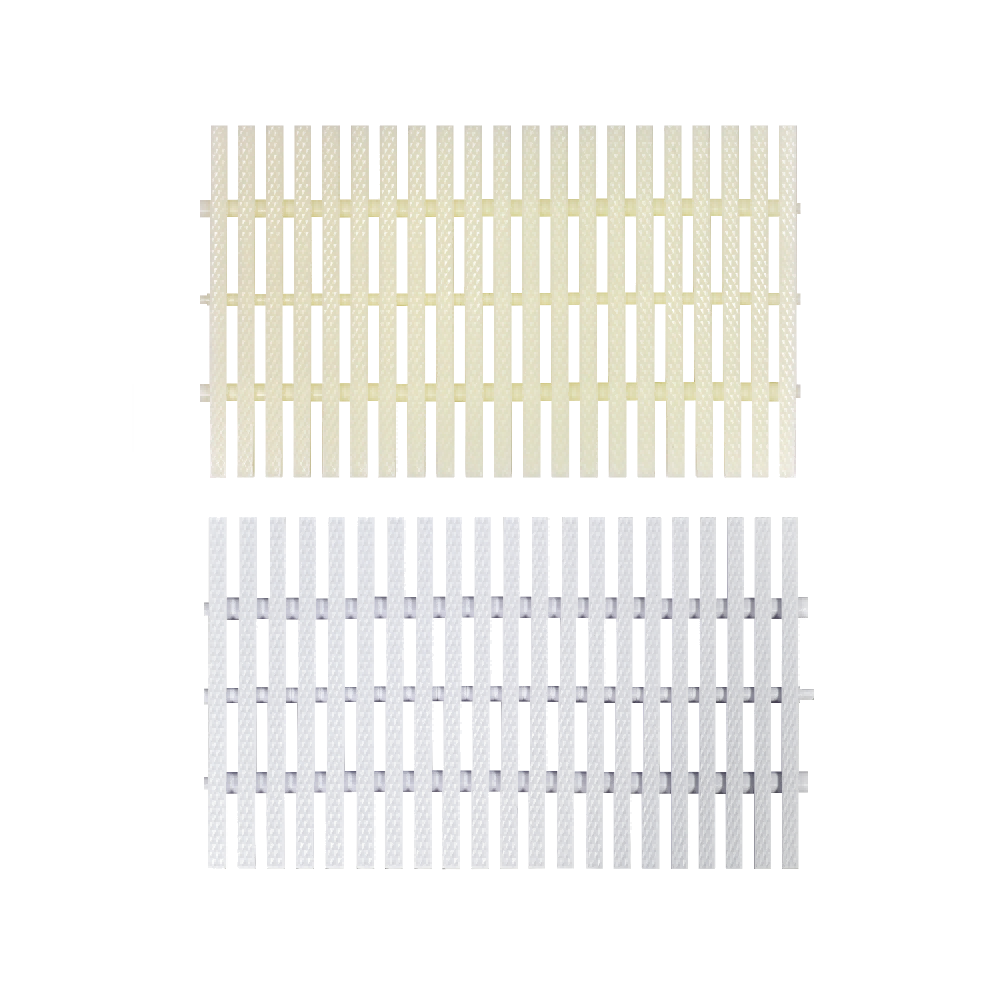

• 3-connector grating: Flexible design that curves to fit freeform and radius pools without cutting

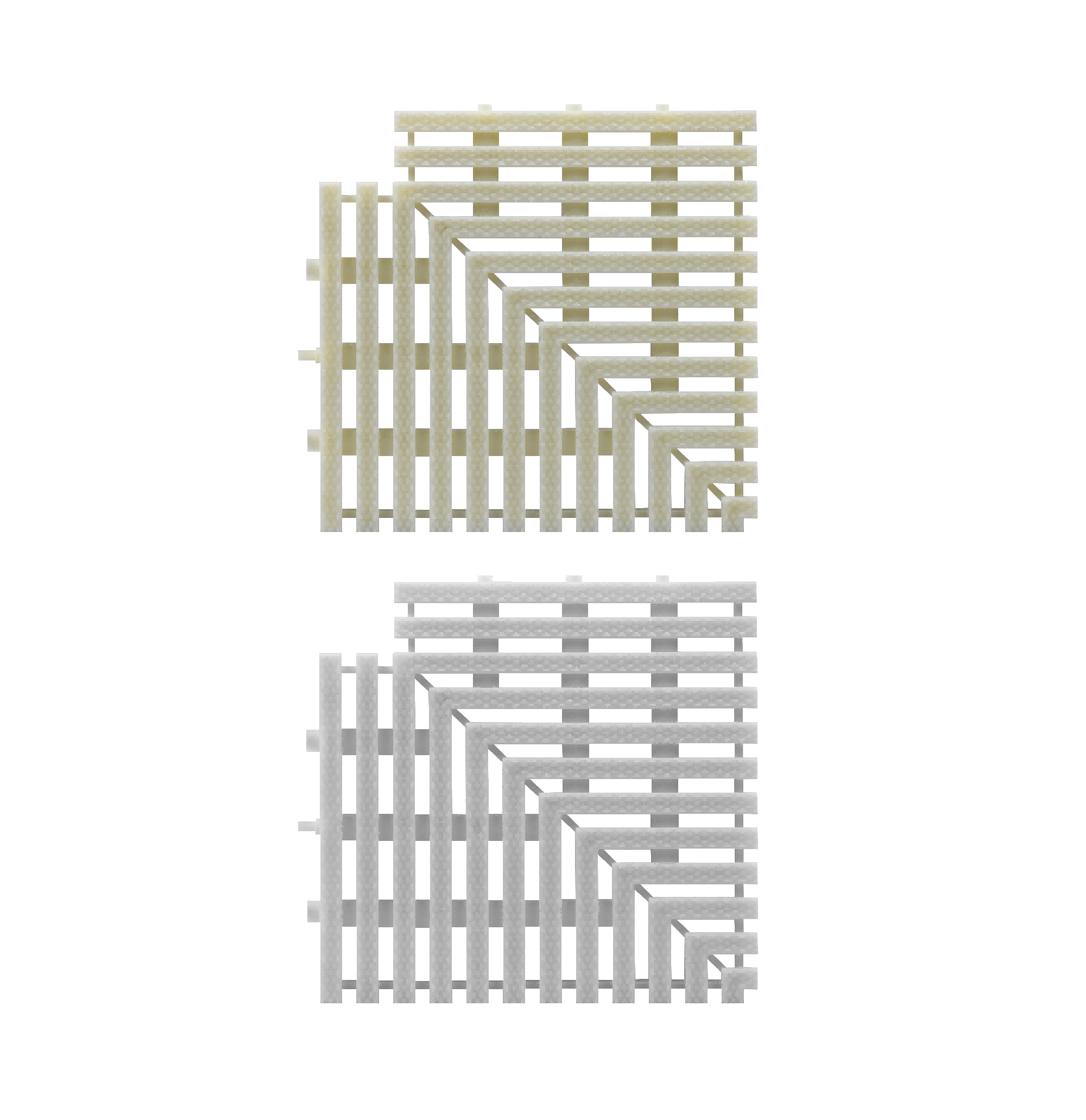

• 90° corner pieces: Pre-made corners for clean, tight joints on square edges

• Wide-rib grating: Reinforced ribs for higher load capacity in high-traffic areas

• Serrated grating: Non-slip serrated surface for extra grip, fast drainage, no standing waterAvailable in 180/250/300/350mm widths, in bone or white.

•


2. Modular Metal Grating

Metal grating offers higher strength and a premium finish for commercial and high-end projects:

• 304 Stainless steel modular grating: 304 stainless steel body with soft ABS end caps to prevent scrapes, corrosion-resistant for pools and hot springs

• Upgraded stainless steel grating: Reinforced modular design for extra load capacity in high-traffic commercial venues

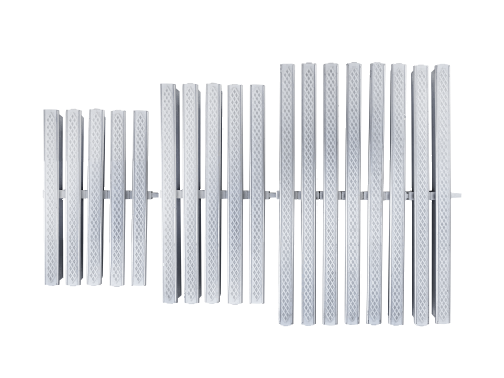

• Aluminum modular grating: Lightweight high-strength aluminum with soft PP non-slip walking surface, comfortable underfoot, no cold metal feel, ideal for premium spas and resortsAvailable in 180/250/300mm widths.

•


3. Solid Sheet Grating

One-piece solid construction offers higher load capacity than interlocking grating, with a smooth surface that does not catch toes:

• ABS sheet grating: High-strength one-piece ABS grating, high load rating, even drainage, custom sizes available for pools, kitchens, and plant rooms

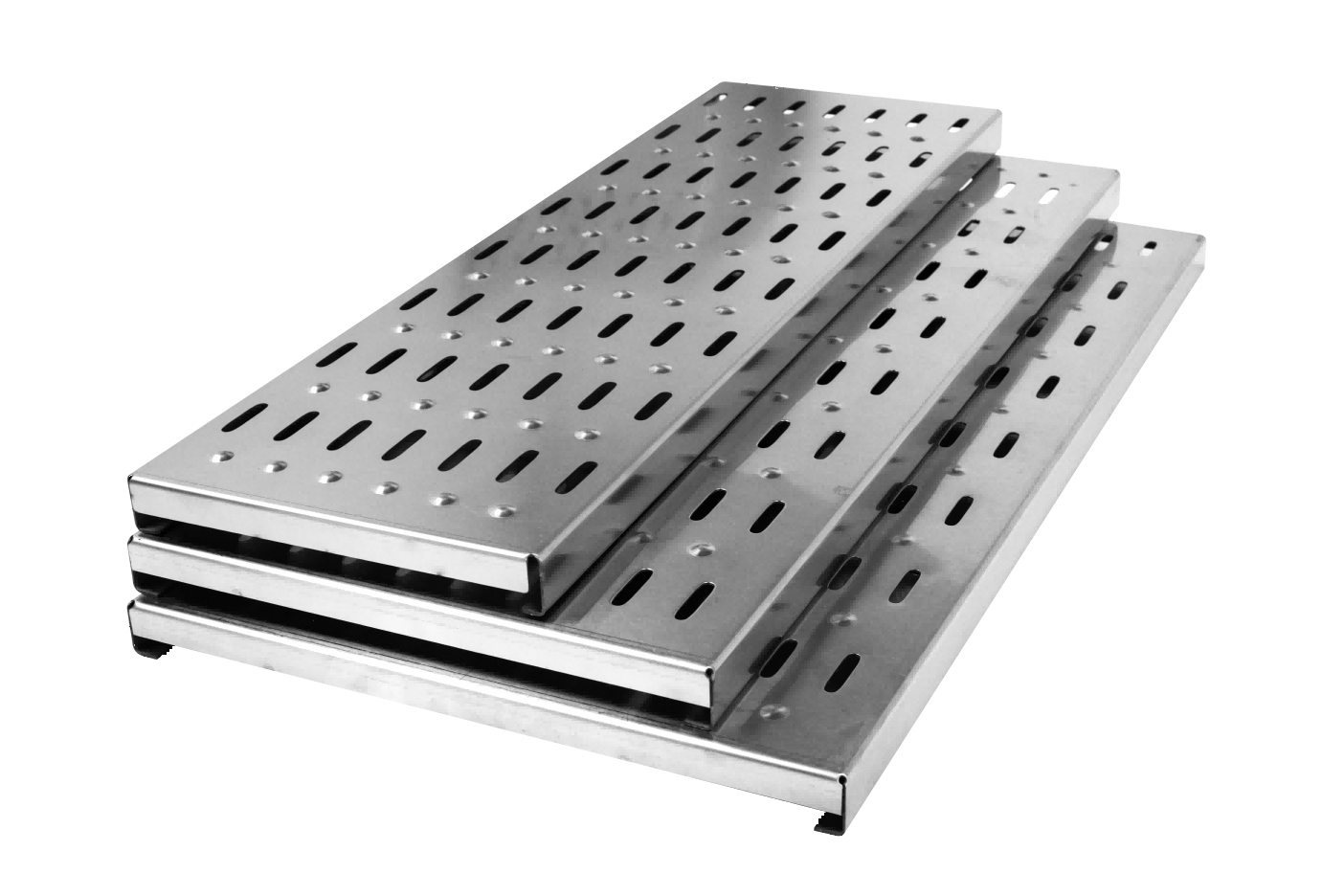

• Stainless steel sheet grating: Available in 201/304/316 stainless steel, corrosion-resistant, easy to clean, fully custom sizes for industrial, kitchen, and heavy commercial use.

•


Which Grating Do I Need?

Match grating type to your venue to avoid overspending, or choosing a product with insufficient load rating:

• Residential/small private pools: Standard 2/3-connector PP grating is the most cost-effective choice, easy to install, and more than strong enough for residential use.

• Public/commercial pools & high-traffic areas: Choose wide-rib PP grating or metal modular grating for higher load capacity, resistant to deformation from constant foot traffic.

• High-end spas, hot springs, corrosive environments: Choose 304/316 stainless steel grating for corrosion resistance, premium finish, and long service life.

• Kitchens, plant rooms, industrial drains: Choose solid sheet grating for maximum load capacity, easy cleaning, and custom sizing.

⚠️ Note: Do not use standard thin PP grating on high-traffic public pools, as it will crack or break under constant use, leading to higher replacement costs.

Installation & Maintenance Tips

✅ For curved/freeform pools, use flexible 3-connector grating to follow radius edges without cutting, for a clean professional finish.

✅ Use pre-made 90° corner pieces for square edges, do not force or bend grating to make corners.

✅ For main walkways and plant room areas, use wide-rib or solid sheet grating to support heavy loads without deformation.

✅ Regularly clear hair and debris from grating slots to keep drainage flowing freely.

✅ Keep plastic grating out of extreme prolonged direct heat where possible to extend service life.

While grating is a small component, it directly impacts pool safety and user experience. Choosing the right material and size ensures long-lasting, safe performance. Bilanda supplies a full range of pool grating in standard and custom sizes, contact us for samples and pricing.
